Chili Chrysanthemum Cassava Drying Belt Conveyor Dryer Machine
Product introduction:
The belt dryer is a continuous flow drying system that can be widely used in the chemical, nutritional, food, vegetables, fruits, powder, granules, building materials, electronics and other industries. It is particularly suitable for drying flake, strip and granular materials with good air permeability. The principle of the belt dryer is to spread the material evenly on the mesh belt, which is dragged by the transmission device and moves back and forth in the drying box. The hot air flows between the material and the water vapor discharged from the holes to achieve the purpose of drying. The heat source can be steam, thermal oil, electricity, thermal oil or hot air furnace.
Application materials:
Mesh belt hot air dryer is widely used for drying food, chrysanthemum, blueberry, apple, banana, seafood, vegetables, spices, coconut flakes, tea, leafy vegetables, pepper, okra, day lily, rose, moringa leaves, moringa seeds, shrimp skin, shrimp head, white radish, carrot, hops, sticky potato, cardamom, nutmeg, bay leaf, cinnamon,fruit,Chinese herbal medicine, dandelion, cassava, etc.
Features:
1. The mesh belt dryer adopts advanced hot air circulation technology, which can quickly and evenly blow hot air to the surface of the material, so that the material is quickly heated and evaporates moisture. The continuous mesh belt dryer has high thermal utilization rate, which greatly improves the drying efficiency.
2. Drying temperature is precisely controllable: the mesh belt dryer can accurately control the temperature and humidity according to the drying requirements and product characteristics of different materials.
3. Mesh belt dryer is equipped with an automatic control system, which can be intelligently controlled according to different materials and drying requirements, including automatic adjustment of parameters such as temperature, humidity, and time, making the drying process more stable and reliable.
4. Belt dryer adopts high efficiency technology, which can effectively reduce energy consumption and reduce exhaust emissions, meet environmental protection requirements, and also reduce production costs.
Technical parameters:
| Specifications | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 |
| unit number | 4 | 6 | 4 | 6 | 4 | 6 |
| Belt Width | 1.2m | 1.2m | 1.6m | 1.6m | 2m | 2m |
drying section Length
m | 8m | 10m | 8m | 10m | 8m | 10m |
| Thickness of the dryer material | 10-80mm |
| Drying temperature | 20-120℃ |
| steam Pressure Mpa | 0.2-0.8 |
| steam Consumption Kgsteam/KgH2O | 2.2-2.5 |
| drying strength KgH2O/h | 6-20kg/m2.h |
| total power of blower Kw | 3.2 | 4.5 | 6.2 | 8.7 | 11.8 | 15.8 |
| total power of equipment KW | 4.1 | 5.2 | 7.3 | 9.6 | 13.2 | 17.5 |
Customer site:
|
|

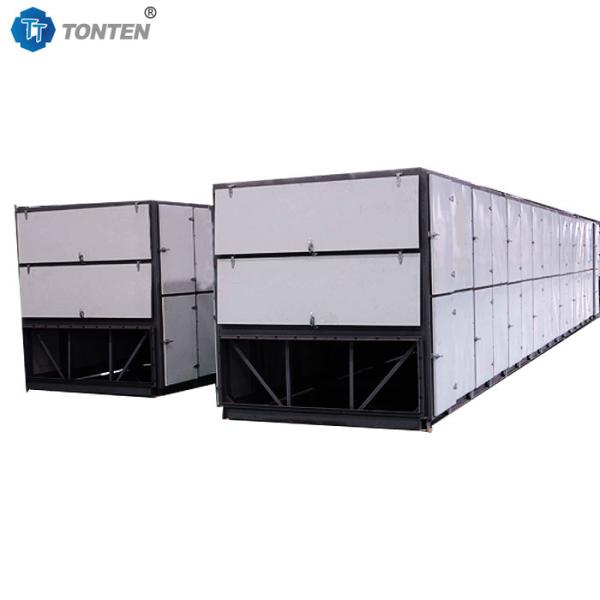

Chili Chrysanthemum Cassava Drying Belt Conveyor Dryer Machine Images
|
